Hytera PD795Ex ATEX VHF

Hytera PD795Ex ATEX VHF
Intrinsically safe digital-analog radio in the ETSI DMR standard

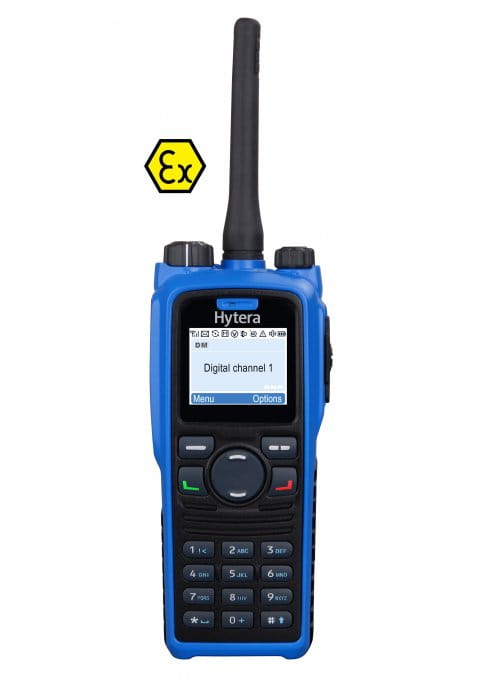

Hytera PD795 Ex is the world's first intrinsically safe ATEX digital-analog radio operating in the DMR and conventional analog standards. PD795 Ex is fully compliant with the ETSI DMR standard. Compliance with the IP67 standard, built-in safety functions (mandown, motion sensor, loneworker) significantly increase the safety of use in the most dangerous environments. This makes the PD795 Ex the best solution for demanding users. ATEX compliance:

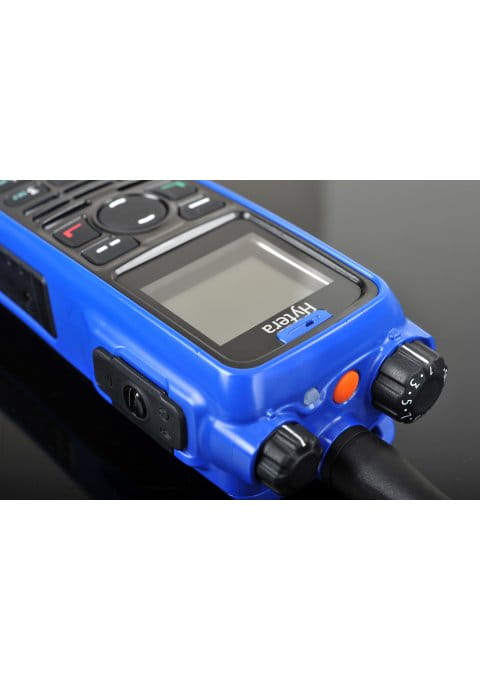

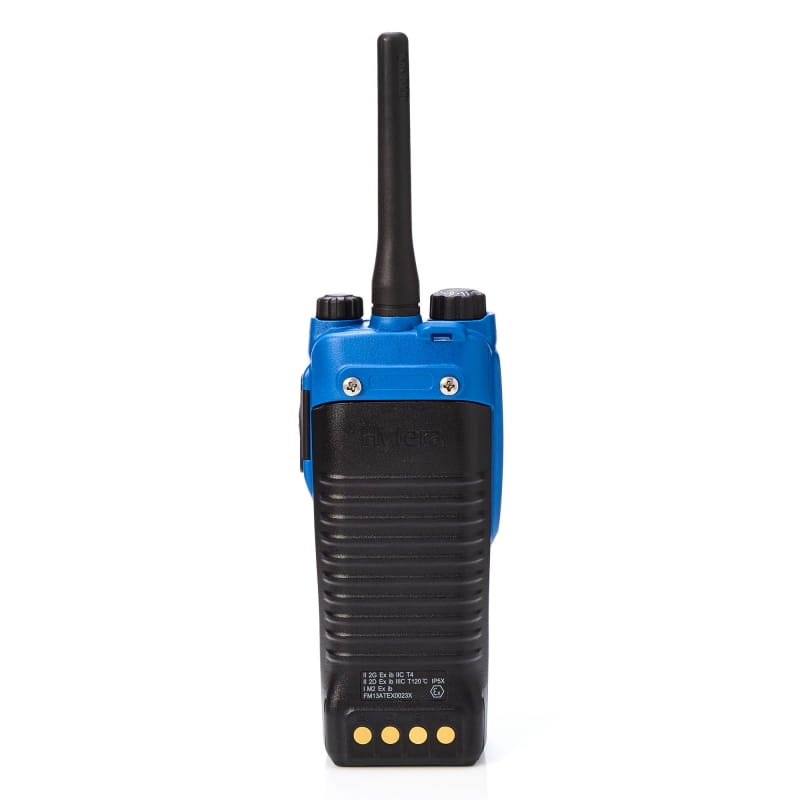

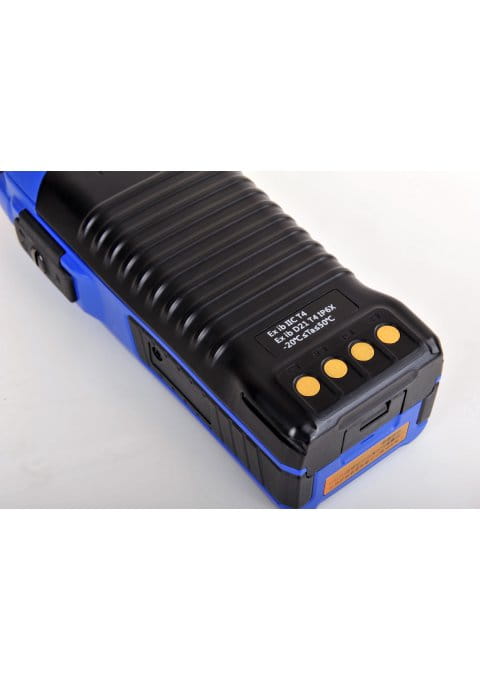

The Hytera PD795 Ex portable radio has a 1.8" color LCD display, making it easy to use in all conditions, even outdoors in strong sunlight. The screen is protected by a special glass that can withstand the impact of a 1kg hammer. The radio has a number of protections that further increase the user's safety in an explosive zone. Automatically detects and informs the user if an audio accessory or battery that does not comply with the ATEX standard is connected. The radio module and battery are closed in tight, plastic capsules, separating their internal circuits from the explosive environment. The surface of PD795 Ex is covered with a special "non -slip" ensuring a secure grip in all conditions.

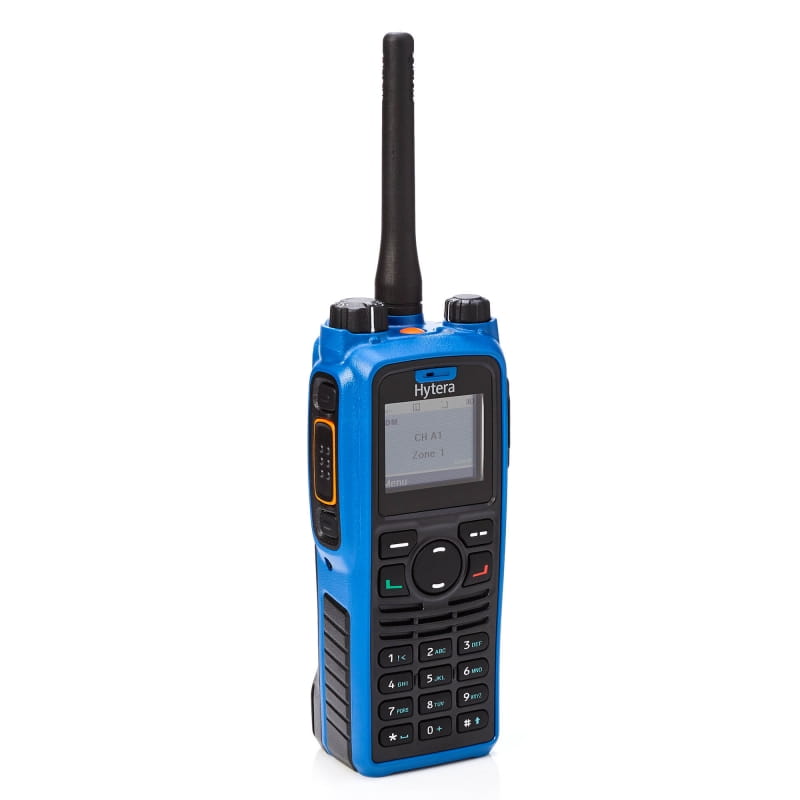

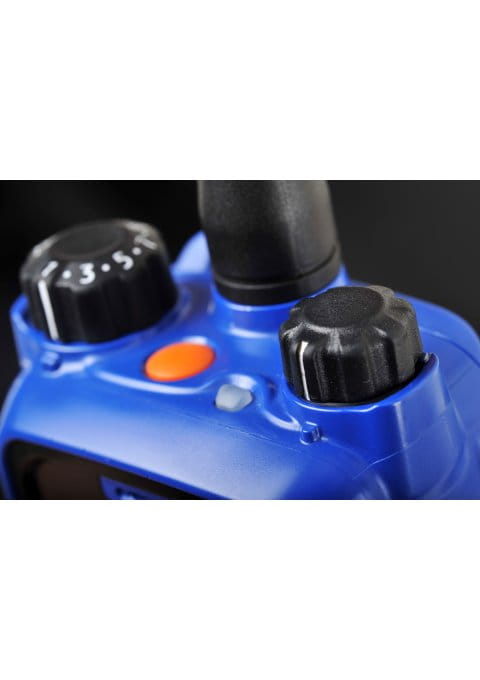

PD795 Ex also has excellent ergonomics. The keyboard with large buttons allows you to operate the radio even when wearing work gloves. Separated by the antenna, the two knobs of the portable radio are moved apart - thus reducing the risk of confusion when operating with gloves or in poor lighting conditions. PD795 Ex, like other Hytera radios, also has a dedicated alarm button, configurable according to: user needs. The built-in high-power speaker ensures sufficient audibility for most applications. The radio has a number of additional functions such as a fully configurable vibration alarm, voice information about the selected channel, mandown/standstill module and GPS. All of these features come standard on every PD795 Ex.

Take advantage of Hytera's patented features in DMR mode!

I. DMO True 2-slot - true two slots in digital mode. Thanks to its patented innovation, Hytera offers the possibility of using two slots also in direct mode (DMO) without the need for additional controllers or other devices. Take advantage of double capacity anytime, anywhere!

II. Pseudo Trunk - Hytera enables dynamic allocation of calls and data to the currently free slot. This enables effective use of available resources.

The PD795Ex series portable radios are IP67 compliant and are resistant to submersion to a depth of 1 m for 30 minutes and are resistant to dust. PD795Ex also meets MIL-STD-810 C/D/E/F/G military standards established by the US Armed Forces. PD795Ex is available as standard with a GPS and mandown module.

Hytera DMR radios are designed to operate in trunking mode compliant with the DMR standard (ETSI DMR Tier III).

All you need to do is purchase a license that extends the radio's functionality to include:

     DMR digital trunking compliant with the open ETSI DMR Tier III standard
     analog trunking compliant with the MPT1327 standard



4 standards in one radio!

     I Conventional analog
     II Conventional digital ETSI DMR Tier II compliant
     III Trunking compatible with MPT1327
     IV Trunking ETSI DMR Tier III compliant

Hytera DMR radios are fully compliant with the DMR standard ETSI-TS102 361.

This is confirmed by independent interoperability tests conducted by the DMR Association.

Certificates can be downloaded from the DMR Association website

General specification:


Frequency range: VHF: 136-174MHz
UHF: 400-470MHz
Output power: 1W
Number of channels: 1024
Number of zones: 64 (each maximum 16 channels)
Channel spacing: 25/20/12.5kHz
Operating voltage: 7.4V (rated)
Battery: 1,800mAh Li-Ion
Battery performance
(5/5/90 cycle, high power, 1.800mAh battery): Analog mode: over 10.5 hours
Digital mode: over 14 hours
Frequency stability: +/- 1.5ppm
Antenna impedance: 50Ω
Dimensions: 141 x 55 x 39mm
Weight with battery and antenna: 550g
LCD display: 160x128 pixels,
65,535 colors,
diagonal 1.8"
Receiver:
Audio output power: 0.5W
Audio distortion: ≤ 3%
Acoustic response: +1 ~ -3dB
Suppression of transmitted interference: < -57dBm
Transmitter:
Audio distortion: ≤ 3%
Acoustic response: +1 ~ -3dB
Digital protocol: ETSI-TS102 361 -1,-2,-3
Digital sound synthesizer type: AMBE++ or SELP
Ambient parameters:
Operating temperature: -20°C - +50°C
Storage temperature: -40°C - +85°C
Resistance class: IP67
US military standard: MIL-STD-810 C/D/E/F
GPS parameters:
TTFF (time to determine first position) after power-on (cold start):
TTFF (time to determine first position) from standby (hot start):Accuracy:

Contents of the package:

     Hytera PD795 Ex radio
     1,800mAh Li-Ion battery
     desktop charger
     AC adapter
     antenna
     belt clip
     instruction
     Declaration of Conformity
