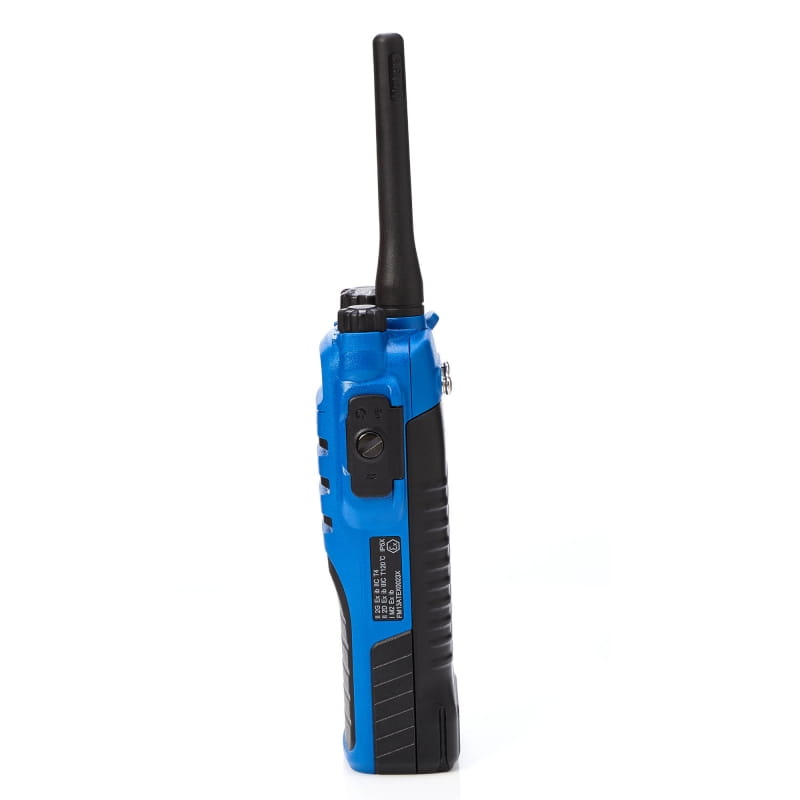

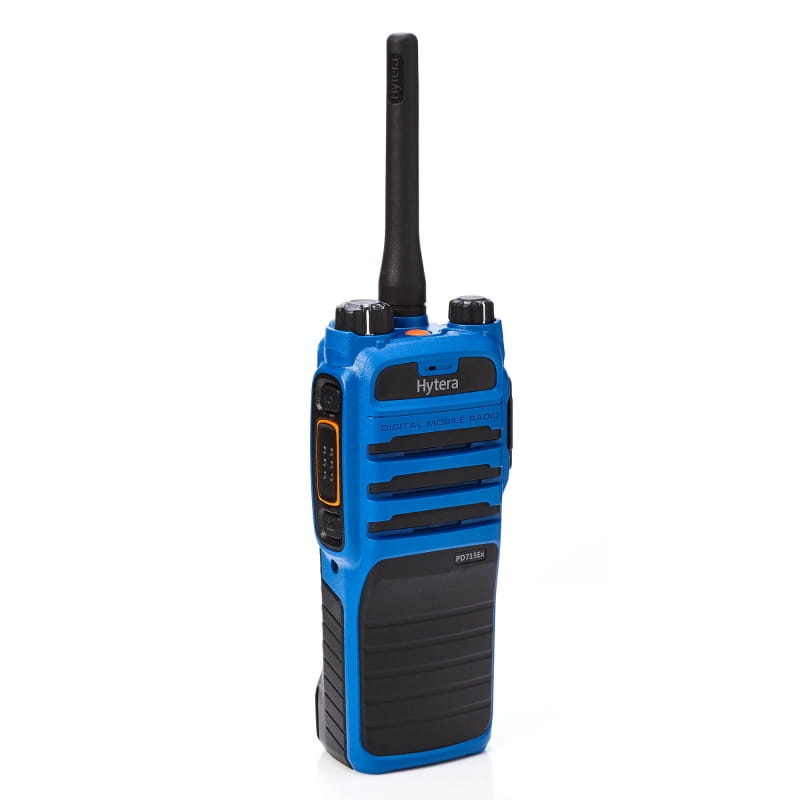

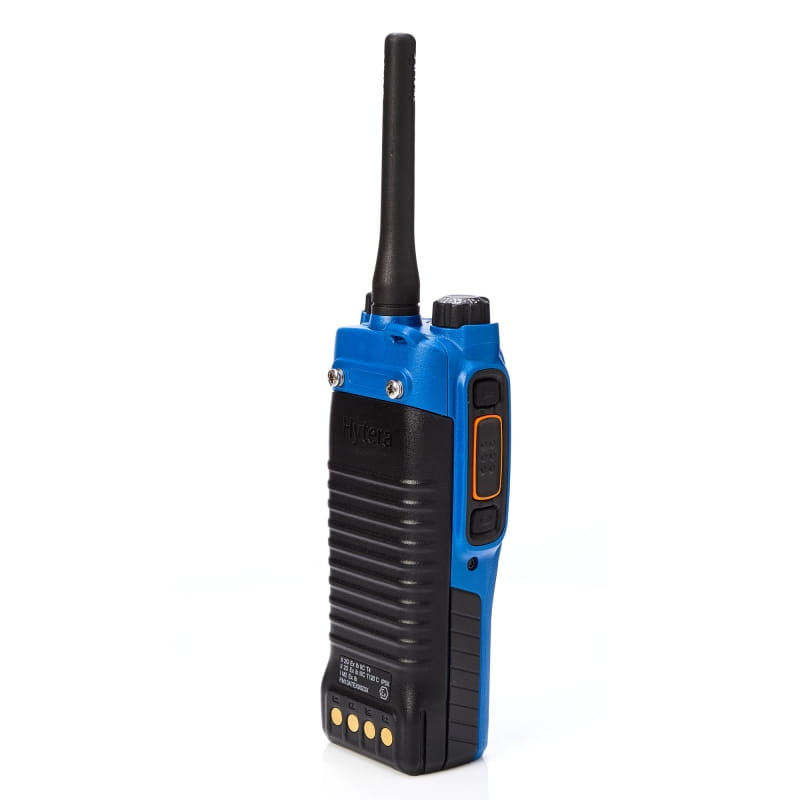

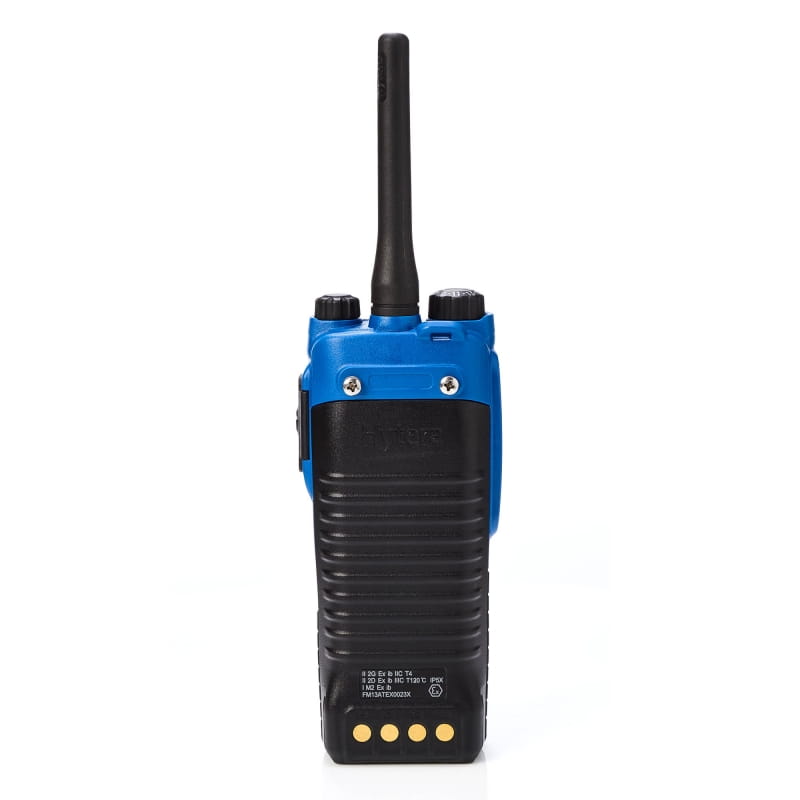

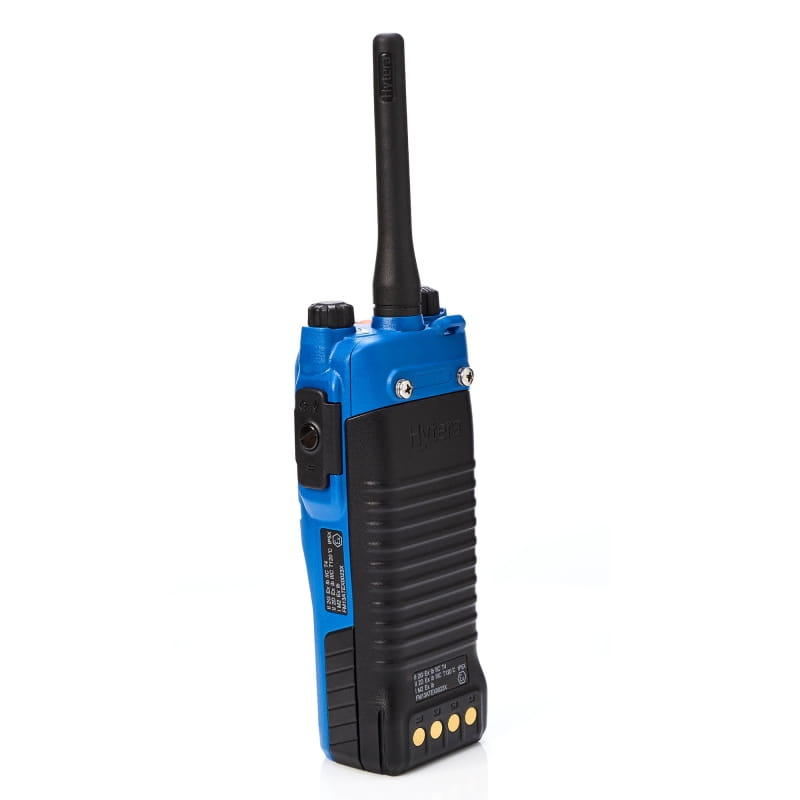

Hytera PD715Ex ATEX VHF

Hytera PD715Ex ATEX VHF
Intrinsically safe digital-analog radios in the ETSI DMR standard

For many specialists, radios are indispensable equipment in their daily work. For anyone who has to work around flammable gases, dust or in mining, safety is particularly important.

Thanks to their high durability and intrinsic safety, the Hytera DMR PD715 Ex and PD795 Ex handheld radios guarantee reliable communication in these hazardous environments.

The PD715 Ex and PD795 Ex portable radios meet the requirements of the open ETSI DMR standard. Compliance with the European ATEX directive, FM and IEC standards and exceptional durability ensure reliable communication in potentially hazardous environments where explosive gases or dust may be present
Main features

Safe and durable

In addition to the requirements of the European ATEX standard, IEC directives and the North American FM standard, the radios also meet the requirements of the MIL-STD-810C/D/E/F/G standard and are protected against water and dust in accordance with the IP67 protection level. This makes both radio models ideal for safe and reliable use even in potentially explosive environments.

Error protection

If you attempt to use a battery or accessories that do not comply with the ATEX standard with the radio, the device will inform the user about this.

Hermetic plastic housing

The radiotelephone and battery are made in hermetic plastic housings, thanks to which the internal circuits are tightly protected against the effects of explosive gases and dust particles.

Heavy Duty LCD Display Cover (PD795Ex)

The heavy-duty LCD cover is highly scratch-resistant and can even withstand impacts from a 1kg hammer.

Innovative battery lock

The patented battery lock ensures that the battery will not fall out of the radio even if it is dropped on a hard surface.

Integrated GPS as standard

Using the integrated GPS module, the PD795 Ex can send location information, for example, to dispatch systems. The dispatcher can process this information and use geofencing, radio location and GPS tracking functions.

Software update possible

The possibility of updating the software provides new functionalities. By changing the firmware, you can activate other digital and analog operating modes without having to purchase a new radio.

Features (selection)

     Various operating modes, select conventional analog or digital (DMR) or trunked MPT, XPT and DMR Tier III
     Versatile voice calls: Individual, group and emergency calls
     GPS functions (reading and sending position data)
     Data services (text messaging, group messaging, radio control via API)
     Various analog dialing modes (HDC1200, DTMF, 2 and 5-tone dialing, Squelch, CTCSS / CDCSS)
     Additional services, Radio Check, Remote Monitor, Call Alert, Radio Disable/Enable
     Various menu languages available - including Polish (PD795 Ex)
     One-Touch features (includes text messaging, voice calling and additional services)
     Scanning
     Automatic change of repeater (Roaming) in IP-Multi-Site systems
     Secure encryption with ARC4 (40 bit) according to DMRA or optional AES128 and AES256 (128 and 256 bit)

ATEX certification

All radios used in potentially hazardous environments must meet the requirements of the European Union's ATEX directives. The PD715 Ex and PD795 Ex devices meet the requirements of the ATEX directives:

ATEX gas protection: II 2 G Ex ib IIC T4

II - Equipment group II (gases, vapors, mist and dust)

2 - Device category 2, degree of protection: very high

G - for explosive atmospheres (gas, vapors, fog)

Ex - explosion protected, ATEX and IECEx certified

ib - intrinsic safety, transmitting power and surface temperature are limited

IIC - explosion group (acetylene, hydrogen)

T4 - temperature class, surface temperature limited to 135 °C



ATEX dust protection: II 2 D Ex ib IIIC T120°C

II - Equipment group II (gases, vapors, mist and dust)

2 - Device category 2, degree of protection: very high

D - for explosive atmosphere (dust)

Ex - explosion protected, ATEX and IECEx certified

ib - intrinsic safety, transmitting power and surface temperature are limited

IIIC - explosion group IIIC (coal dust, metal dust) T120°C temperature class, surface temperature limited to 120 °C



ATEX protection for use in mining: I M2 Ex ib I

I - Equipment group I (mining)

M2 - Device category M2: methane and dust, protection level: very high

Ex - explosion protected, ATEX and IECEx certified

ib - intrinsic safety, transmitting power and surface temperature are limited

I - explosion group I (methane)

Radiotelephone Hytera DMR models are fully compliant with the DMR ETSI-TS102 361 standard.

This is confirmed by independent interoperability tests conducted by the DMR Association.

Certificates can be downloaded from the DMR Association website

General specification:
General information
VHF frequency range 136 – 174 MHz;
UHF 400 – 470 MHz
Supported operating modes • DMR Tier II
according to ETSI TS 102 361-1/2/3
• Simulcast
• XPT Digital Trunking
• DMR Tier III
according to ETSI TS 102 361-1/2/3/4
• Analog, MPT 1327
Number of channels 1024
Number of zones
(per zone up to 16 channels) 16 (PD715 Ex)
64 (PD795 Ex)
Channel raster 12.5 / 20 / 25 kHz (analog)
12.5 kHz (digital)
Operating voltage 7.4 V (nominal)
Standard battery 1800 mAh (lithium-ion battery)
Battery life
(duty cycle 5-5-90,
high transmitting power,
standard battery) PD715 Ex:
• approx. 14 h (analog mode)
• approx. 17 h (digital mode) PD795 Ex:
• approx. 13 h (analogue mode)
• approx. 15 h (digital mode)
Frequency stability ±1.5 ppm
Antenna impedance 50 Ω
Dimensions
(H x W x D, without antenna) 141 x 55 x 37 mm (PD715 Ex)
141 × 55 × 39 mm (PD795 Ex)
Mass
(with antenna and standard battery) 485 g (PD715 Ex)
495 g (PD795 Ex)
LCD display (PD795 Ex only) 1.8 inch, 160 × 128 dots, 65,536 colors
Programmable buttons 3 (PD715 Ex) / 5 (PD795 Ex)
Environmental conditions
Operating temperature range -20 °C to +50 °C
Storage temperature -40 °C to +85 °C
Electrostatic discharge IEC 61000-4-2 (class 4),
±8 kV (contact), ±15 kV (air)
IP67 dust and moisture protection
Drop and vibration resistance MIL-STD-810 C / D / E / F / G
Relative air humidity MIL-STD-810 C / D / E / F/ G
Explosion protection Gas: II 2G Ex ib IIC T4
Dust: II 2D Ex ib IIIC T120°C IP5x
Mines: I M2 Ex ib I
GPS
Time to first position location (TTFF) < 1 minute (cold start)
< 10 seconds (warm start)
Horizontal accuracy < 10 m
Transmitter
Transmitting power 1 W
Modulation 11 K0F3E at 12.5 kHz
14 K0F3E at 20 kHz
16 K0F3E at 25 kHz
4FSK 12.5 kHz digital modulation (data only): 7K60FXD
12.5 kHz (data and speech): 7K60FXW
Interfering signals and fundamental wave distortion -36 dBm (< 1 GHz)
-30 dBm (> 1 GHz)
Modulation limit ±2.5 kHz at 12.5 kHz
±4.0 kHz at 20 kHz
±5.0 kHz at 25 kHz
Self-noise separation 40 dB at 12.5 kHz
43 dB at 20 kHz
45 dB at 25 kHz
Adjacent channel rejection 60 dB at 12.5 kHz
70 dB at 20/25 kHz
Audio sensitivity +1 dB to -3 dB
Audio distortion factor ≤ 3%
Type Digital-Vocoder AMBE +2™
Receiver
Sensitivity (analog) 0.3 μV (12 dB SINAD)
0.22 μV (typical) (12 dB SINAD)
0.4 μV (20 dB SINAD)
Sensitivity (digital) 0.3 μV / BER 5%
Adjacent channel attenuation
TIA-603 ETSI 60 dB at 12.5 kHz / 70 dB at 20 / 25 kHz
60 dB at 12.5 kHz / 70 dB at 20 / 25 kHz
Intermodulation
TIA-603 ETSI 70 dB at 12.5 / 20 / 25 kHz
65 dB at 12.5 / 20 / 25 kHz
Suppression of interfering signals
TIA-603 ETSI 70 dB at 12.5 / 20 / 25 kHz
70 dB at 12.5 / 20 / 25 kHz
Signal-to-noise ratio (S/N) 40 dB at 12.5 kHz
43 dB at 20 kHz
45 dB at 25 kHz
Nominal audio output power 0.5 W
Audio distortion factor ≤ 3%
Audio sensitivity +1 dB to -3 dB
Wired interference emission < - 57 dBm



All technical information has been factory tested to the appropriate standards. Due to continuous product development, changes are reserved.

Included:

     Hytera PD715 Ex radio
     BL1807-Ex ATEX Li-Ion battery
     desktop charger
     AC adapter
     antenna
     belt clip
     instruction
     Declaration of Conformity
